Resilient Seat Gate Valve Series Main Parts Materials Company Profile Tianjin Newton Valve Co., Ltd is a professional va
Basic Info
Model NO. Newton-3
Actuator Manual
Seal Surface Wedge Gate Valve
Thread Position of Valve Rod Inside Gate Valve
Usage Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control
Standard Awwa C509/C515 BS5163 DIN3202 3352 F4/F5 SABS663
Application Industrial Usage, Water Industrial Usage, Marine
Color Customized Color
OEM Accepted
Warranty 2 Years
Place of Origin Tianjin, China
Brand Name Tianjin Newton Valve
Working Pressure Pn6/Pn10/Pn16/Pn25/JIS5K/10K/16K/150lb
Operation Gear Box
Packing Wooden Box
Body Ductile Iron
Seat EPDM
Disc Ductile Iron
Shaft Ss410
Transport Package Plywood Case
Specification DN40-DN1200
Trademark NEWTON
Origin Tianjin
HS Code 8481804090
Production Capacity 10000000 Sets Per Year
Product Description

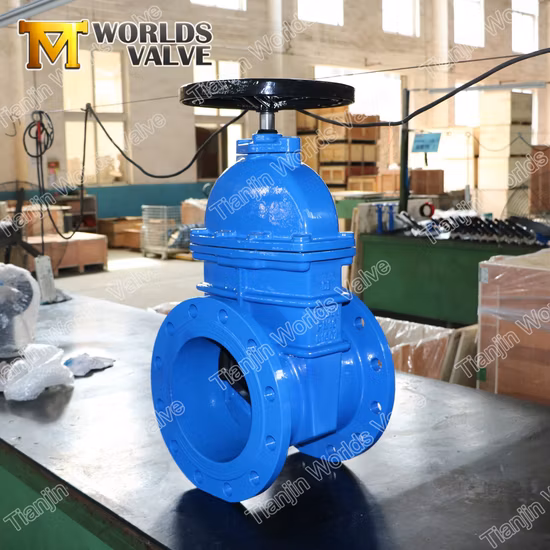

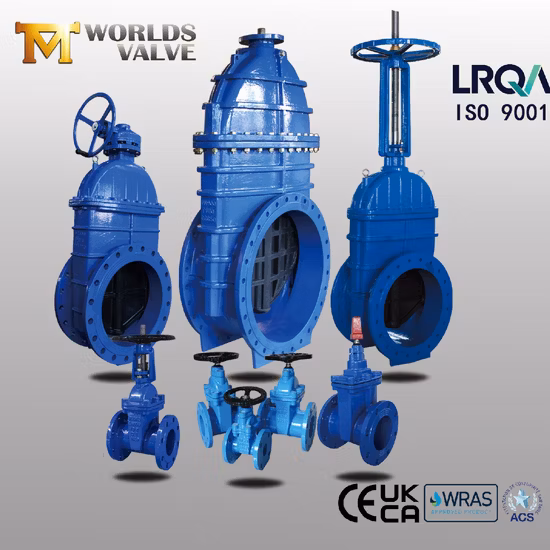

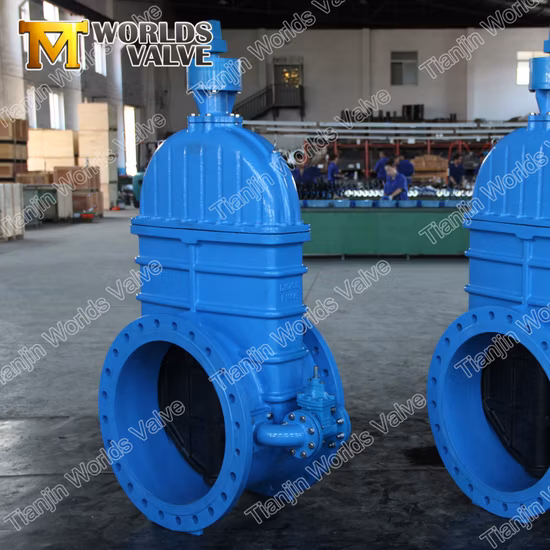

Resilient Seat Gate Valve Series
SizeDN40-DN1200
Face to FaceAwwa C509/C515, BS5163, DIN3202 3352 F4/F5, SABS663, AS, KS, GOST
Connection FlangePN6/PN10/PN16/PN25/JIS5K/10K/16K/150LB/AS2129 Table D/E
Mounting FlangeOptional: ISO5211
Working PressurePN10/PN16/PN25
ApplicationFresh Water, Sea Water, Oil, Gas, Acid, Food, Steam
Application Temperature-50~250 ºC

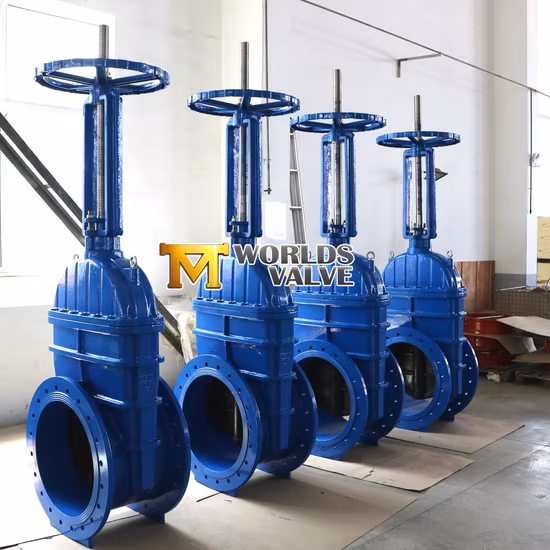

Stem TypeNon-Rising Stem/NRS or Rising Stem/OS&Y
SeatSoft/Metal
Connection Holes No.2/4 Holes
Body Type1/2 Piece

Main Parts Materials
No.PartsMaterial
1BodyDuctile Iron(GGG40/50)
2SeatNBR, EPDM/REPDM, Viton
3ShaftSS416, SS431, SS304, SS316, Bronze, Duplex Stainless Steel, Monel
4DiscDI+EPDM/NBR/VITON
5BonnetBrass, Bronze
6O RingNBR, EPDM, FKM
7OperationHand Wheel, Cap, Gear Box, Electric/Pneumatic/Hydraulic Actuator



Company Profile

Tianjin Newton Valve is a professional valve manufacturer of rubber seat butterfly valve, wafer check valve, ball check valve, resilient seat gate valve, cast iron valves for marine, Y strainer.
We adpot advanced, efficient, careful manage system to ensure that we can produce high-quality products in time, experieced sales team, perfect after-sales support to satisfy clients.
We adheres to " Newton use science to do better valves, focus on details, continuous improvement" which makes us in an invincible position in the fierce market competition.
We believe that we will do the better quality products, supply most perfect service for you.



FAQ

Q:Could you offer a free sample ?
A:We can provide free samples for you to evaluate, but you need to bear their shipping costs.

Q:Are you a facrory or trade company ?
A:We are a marine butterfly valve manufacturer, and specialize in the production and export of valves for more than ten years
Q:Would you have a discount if l have a large order?
A:Yes we could offer different discount according to your order quantity
Q:How will you make the shipment?
A:By sea shipment/Air/Express service.

Q4:Do you accept OEM business? A4:Yes.We do.
